Products Specification
| Item | Color | Texture | Thickness(mm) | W*L | Kg/Roll | Qty/pallet |
| SY811 (Roll) | Transparent | gloss/gloss | 0.1 | 930mm*500m | 55.8kg | 6 rolls |
| 0.125 | 930mm*400m | 55.8kg | 6 rolls | |||
| 0.175 | 930mm*350m | 68.4kg | 6 rolls | |||
| 0.25 | 930mm*300m | 83.7kg | 6 rolls | |||
| 0.3 | 930mm*250m | 83.7kg | 6 rolls | |||
| 0.375 | 930mm*200m | 83.7kg | 6 rolls | |||
| 0.5 | 930mm*150m | 83.7kg | 6 rolls |
.
Key Characteristics
| Properties | Test Method | Unit | Value | |
| Specific Gravity | ASTM D792 | g/cm3 | 1.2 | |
| Water Absorption Equilibrium,24 Hrs | ASTM D570 | % | 0.35 | |
| Light Transmission | ASTM D1003 | % | ≥89 | |
| MECHANICAL | ||||
| Tensile Strength | ASTM D882 | psi | 7,500 | |
| ISO R1184-1987 | Mpa | 50 | ||
| Elongation ultimate | ASTM D882 | % | >90 | |
| Impact Strength @ 10mils | JIS-k6745 | In -Ibs | 60 | |
| Tear Strength Propagation | ASTM D1922 | g/mil | >30 | |
| THERMAL | ||||
| Vicat Softening Temperature | ASTM D1525 | ℃ | 135 | |
| Thermal shrinkage rate | ASTM D1204 | % | 0.8 | |
Applications
Because of its excellent physical and chemical properties, polished polycarbonate film has a wide range of applications in many fields, the following details of its application in membrane switches, control panels, nameplate, protective masks, instrument panels and wide-angle mirrors.

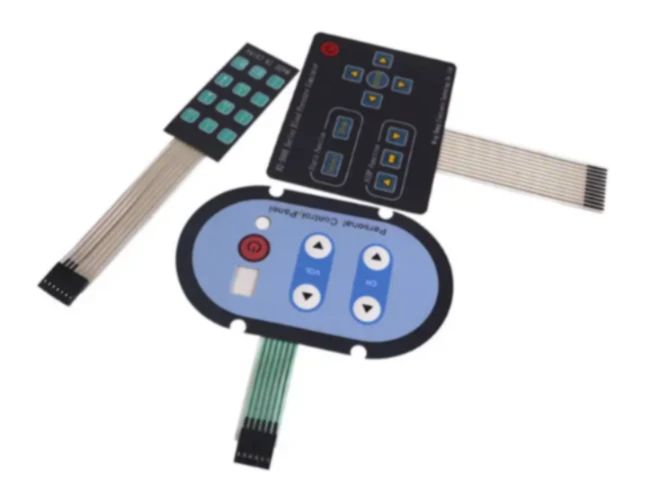

Membrane switch (completed with conductive lines and contacts printed on it) can be made from polished polycarbonate PC film, which is covered in an insulating layer. Membrane switch is extensively employed in medical, household appliances, and communication equipment, among other industries.

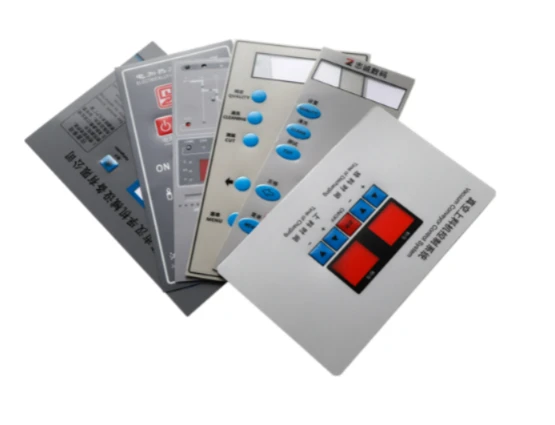

Control panel:The different buttons, indicators, and other patterns can be printed on PC film, which can then be processed through specific procedures to provide touch functionality,such as Industrial control, automotive electronics, and other areas make extensive use of the wear-resistant, dust-proof, and waterproof control panel.

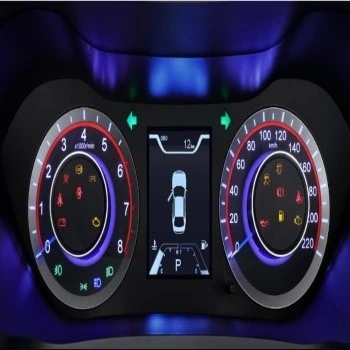

Polished PC film is used in instrument panels in automobiles, motorbikes, ships, and many types of machinery and equipment, as the instrument panels possess excellent clarity, robust stability, and extended service life.
The poilshed polycarbonate film is used to make protective maks,which is very popular and play a key role in Covind-19.The protective masks can successfully shield their faces from dangerous gasses, spills, and other hazards. Additionally, it offers comfortable wear and clear vision thanks to its good air permeability and anti-fog function. Industrial, medical, fire, and other areas frequently use this type of protective mask.
Advantages
Polished polycarbonate film has a great optical clarity, outstanding impact resistance, and exceptional heat resistance. It features a smooth, shiny surface on one or both sides, which improves light transmission and aesthetic appeal. PC film is lightweight, resilient, and quick to produce, making it perfect for applications that require both transparency and strength. It also has high dimensional stability, flame resistance (UL94 certified choices), and may be coated with anti-scratch, anti-glare, or UV protection.
FAQ
Q1：How to select the thickness of the film?
A: The common thickness is 0.1 - 1.0mm. For the touch layer, 0.1 - 0.2mm is chosen (for lightweighting); for the structural support layer, 0.3 - 1.0mm is selected (to resist deformation).
Q2:How to choose PC film in different applications?
A: Automotive touch screens (high temperature resistance/impact resistance), medical equipment panels (resistant to chemical disinfection), outdoor electronics (UV resistance), industrial buttons (resistant to oil stains), and consumer electronics (high light transmittance).
