Products Description

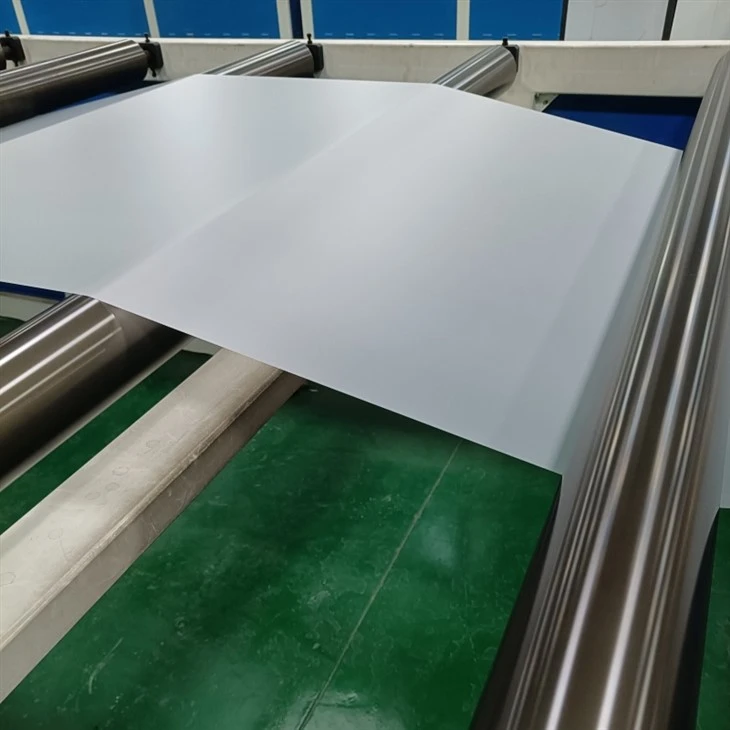

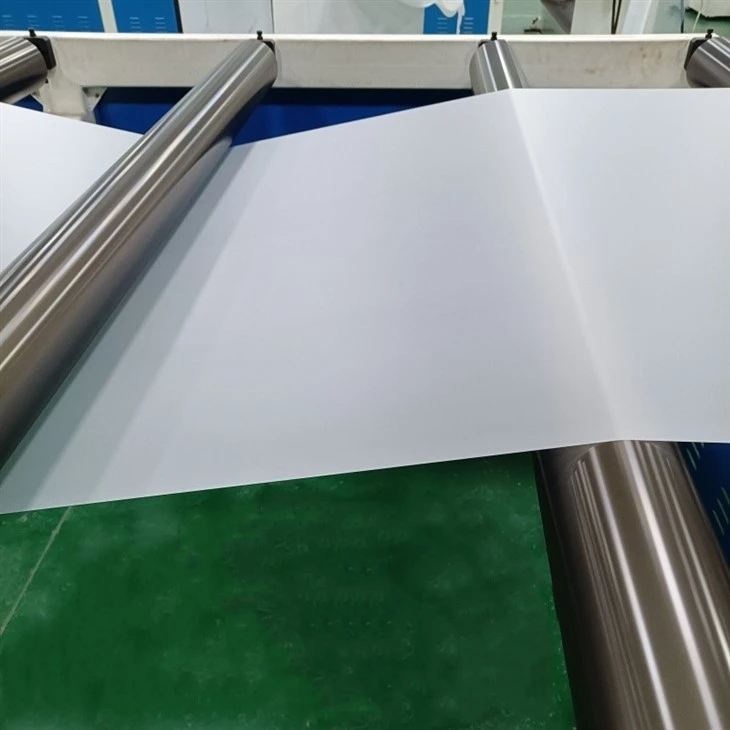

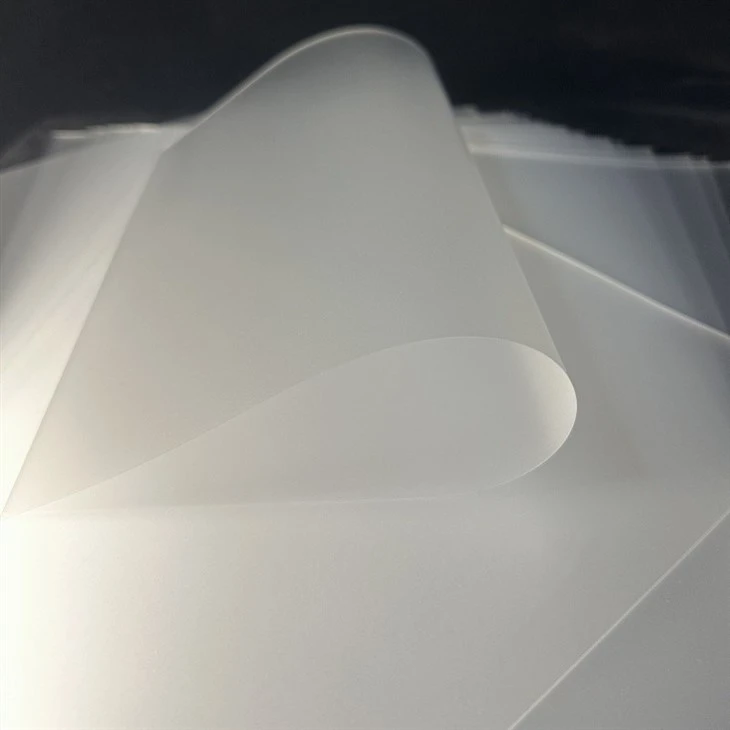

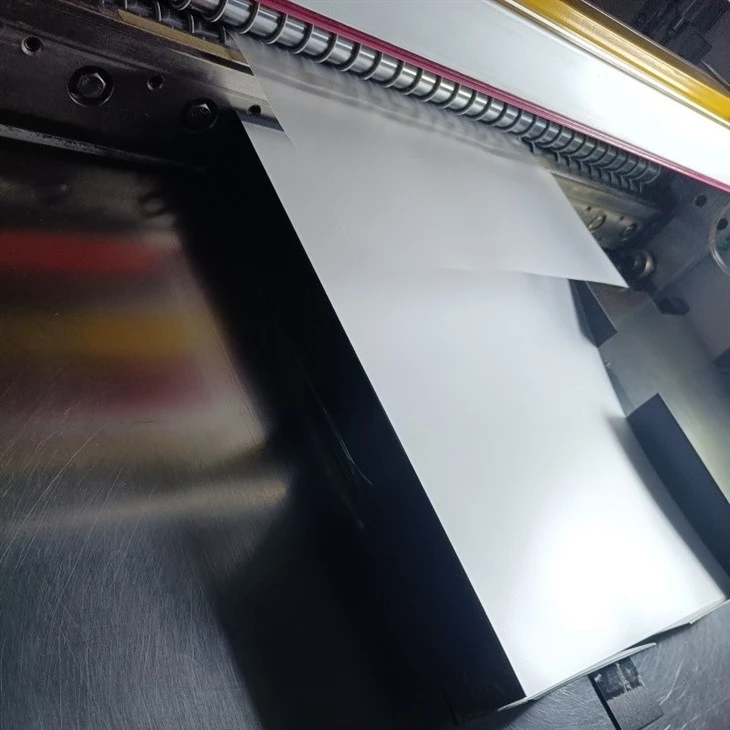

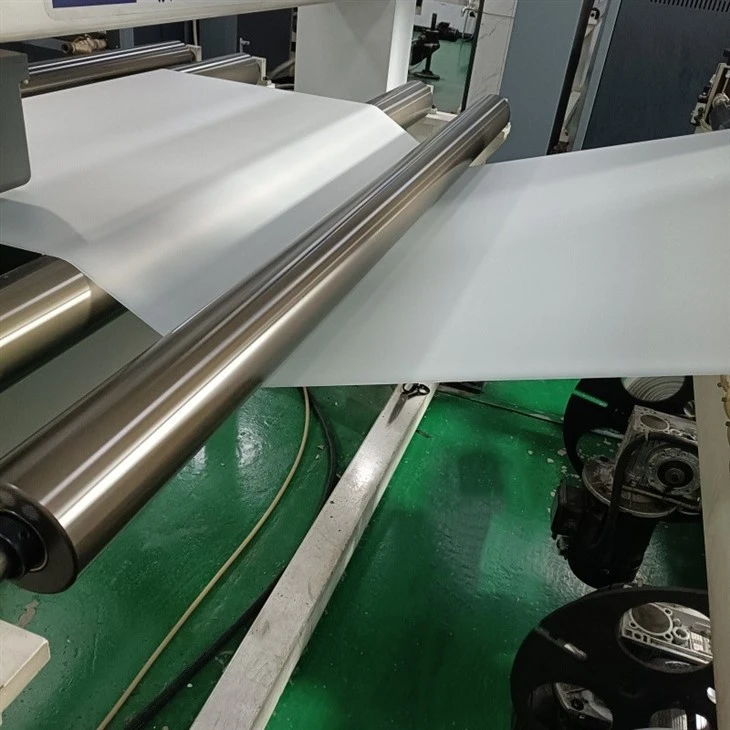

Polycarbonate PC overlay film for Security ID cards,Polycarbonate PC Laserable Overlay film, Polycarbonate PC Passport Inlay Film,PC Uncoated Overlay Film, PC Laserable Overlay Film ,PC Laser Film for Polycarbonate PC Cards,e-Passports, e-ID Cards Core,Driver License Cards.

Model: CKC32

Items: Coated /Uncoated/Laserable

Thickness: 0.05mm ~ 0.80mm

Using: Security printing for goverment cards like polycarbonate PC ID Security Cards,Polycarbonate PC E-passport,Polycarbonate PC Driver License /PC Inlay sheet,combination Card
Suit for printing: offset/UV/silk screnn

Size : A4/A3/295*480mm /295x485mm/470x290mm/325mm*480mm or Customized etc.

How to laminate the PC card ?

To control the time and termperature are very important when laminating the PC cards. Otherwise the laminating effective will mot be good during production. See the following ofrequired time and temperature.You can adjust the hot pressing temperature according to the different machines.

Preheat: 1500 seconds
Hot pressing: temperature 170~195 ℃
Segment 1: 0.5 Mpa 200 seconds
Segment 2: 1 Mpa 60 seconds
Segment 3: 2.5 Mpa 60 seconds
Segment 4: 4.0 Mpa 60 seconds
Segment 5: 5.5 Mpa 500 seconds
Cold pressure: 8 Mpa 1800 seconds

Applications

PC Overlay Film is widely used as the surface protection layer for ID cards due to its high light transmittance, scratch and wear resistance, as well as weather resistance.

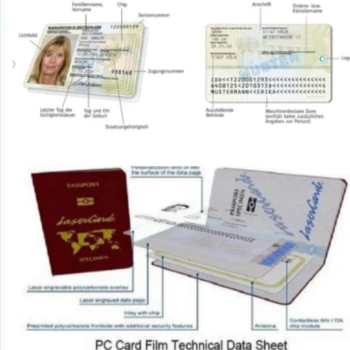

While other PC card base films are included PC core,PC laserable overlay film with different thickness. PC core sheet is the middle support layer of the card,while PC laserable overlay film is for engraving layer.

PC card films are applied to ID cards with anti-couterfeiting and anti-tampering requirements, like driving license, passport of European and American ,credit card,bank cards, national IDcards,e-Passports, e-ID Cards,Driver License etc.

FAQ

Q1: What thickness for PC card core sheet?

A2: The common thickness can be 0.2mm,0.24mm,0.28mm,0.3mm,0.33mm,0.34mm,0.4mm,0.45mm. It's possible for us to make customized thickness.

Q2: What thickness for PC overlay film?

A2: The common thickness can be 0.05mm,0.06mm,0.065mm,0.07mm,0.075mm,0.1mm,0.12mm,or customized.

Q3:Can PC overlay film be coated?

A4:Yes, It can be coated a thin glue.

Q4:Is PC Overlay Film compatible with PVC card substrate?
A4: It is fully compatible. It can be firmly bonded with PVC substrate through hot pressing process, and its temperature resistance and bending resistance are significantly better than those of pure PVC cards, with the service life increased by more than three times.

Q5: Is there support for environmental protection certifications?
A5: It complies with RoHS, REACH and some biobased certifications;
