Products Description
Overlay film made of transparent polycarbonate; thickness and size are customizable.High-security cards including bank cards, ID cards, social security cards, and RFID cards are mostly protected by it. The transparen polycarbonate overlay film has exceptional qualities as an engineering plastic.PC Film with ISO9001 certificate.

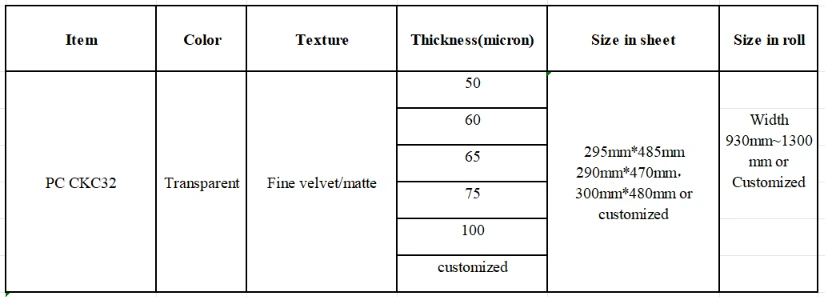

Specification of Polycarbonate Overlay Film
Properties
|
Product name |
Transparent polycarbonate overlay film |
|
Thickness |
50~250micron |
|
Thickness Tolerance |
50~100mircron,±8%, 100~250micron,±5% |
|
Squareness |
±0.5mm/m |
|
Color |
Transparent |
|
Density |
1.20±0.02g/cm³ |
|
Surface gloss grade 60° |
Front side:fine velvet 2.0~7.0 Digits; Reverse side:fine matte ≤15 Digits |
|
Surface Tension |
≥38 Dynes/cm |
|
Light transmittance |
≥85% |
|
Vicat Soft Point |
148±2 |
|
Coefficient of Linear Thermal Expansion |
5.8-7.5(x10-5/℃) |
|
Thermal Shrinkage ( at 150℃,30min) |
0.5%-0.7% |
|
Water absorption |
≤0.2% |
|
Tensile Strength |
≥55Mpa (MD/CD) |
|
Break Elongation |
≥60% (MD/CD) |
|
Tensile Modulus |
＞2100Mpa |
|
Dielectric Strength(@10 mils) |
1300 |
|
Volume Resistivity @25℃, 50％RH |
1.00E+16(Ω/square) |
|
Surface Resistivity @25℃, 50％RH |
1.00E+15 (Ω-cm) |
Package and delivery
Package: In sheet: PE bags with pallet. In roll: Suspension packing with pallet.
Delivery:15days after getting the payment.
FAQ
Q1. What is the production capacity per month?
A:Our factory, Jiangsu Zhenzhen New Material Technology Co., Ltd. The production capacity is 600 tons per month.
Q2. Can you tailore the transparent PC overlay film according to customer's requirements?
A:Yes, we can provide customization services to meet client's specifications, the thickness and sizes are flexible to be tailored.
Q3. What features does PC card film have?
A:Our polycarbonate PC card film has advanced security features to protect against tampering and counterfeiting.
Q4. How do you gurantee the quality of transparent PC overlay?
A:We comply with the strict quality control measures throughout the manufacturing process.
Our products past rigorous testing to meet industry standards.
Q5. What is the lead time for orders of PC overlay?
A:The lead time is 15~20days after getting the payment, while the exact lead time for orders will be informed you according the quantity and customization requirements.For further inquiries, please don't hesitate to contacting with our sales team.
